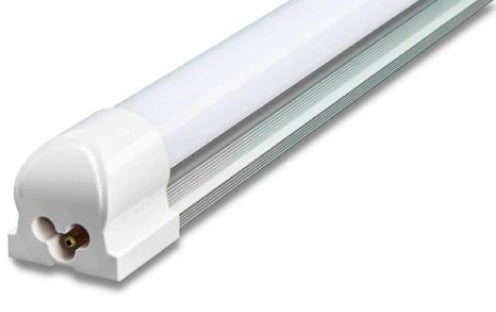

Linkable LED T8 4ft 36w/24w/12w Adjustable 4000K/5000K/6500K Adjustable CLEAR LENS w/Mounting Hardware

- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.

• The New innovative design includes Stainless Steel Mounting Hardware and Quad-Row 270° Projection.  Looks and performs as a high end, Commercial/Industrial LED product should.  Use in work shops, utility sheds, utility and laundry rooms, etc.
• Our Quad-Row Series lights provide excellent lumen projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems using multiple lamps.
• Easy to install, offering end to end, continuous run installation, up to 3 in the run.

*MAXIMUM OF 4 UNITS LINKED TOGETHER

We recommend 8 or more Lumens Per Cubic Foot for efficient lighting.

Length x Width x Height x 8 = Minimum recommended Lumens

** Divide that total lumen by the lamp of your choice lumen output, and this will give you your lamp count needed for that product in your area +-5%

EXAMPLE: 40'W x 60'L x 12'H = 28,800 cu. ft. x 8 = 230,400 Divided by (72w 8' V-Series 10,944 lumens) 21.05 lamps - Our contractors typically use 3 rows of 7 in this space running one down the center, and the 2 outside rows 8' off the side walls.

Specifications:
- T8 4'
- 36w/24w/12w Adjustable
- 4000K/5000K/6500K Adjustable
- 4,680 Max Lumens CLEAR LENS
- CLEAR COVER
- 100-277vAC
- W/Mounting Hardware
- Direct Wire Cord 10" (Whip)
- Linking Plug for Daisy Chaining up to 6 Units (5"-10ft) Linking Cords Available, and - - 3-Prong Cords in our lighting accessories section.
- Socket Cap
- Certification: ETL, DLC
- Industrial/Commercial Grade
- Interlinking for continuous runs of up to 6 units
- 250 watt Fluorescent Equivalent
- 80+ CRI
- Instant Start In Cold Conditions
- No Flicker or Hum
- Aluminum/Polycarbonate Construction
- 5 Year Warranty

DRIVER SPECIFICATIONS

WARRANTY STATEMENT

WIRE COLOR CODE FOR INSTALLATION
